Highlights
- Best-fit solution

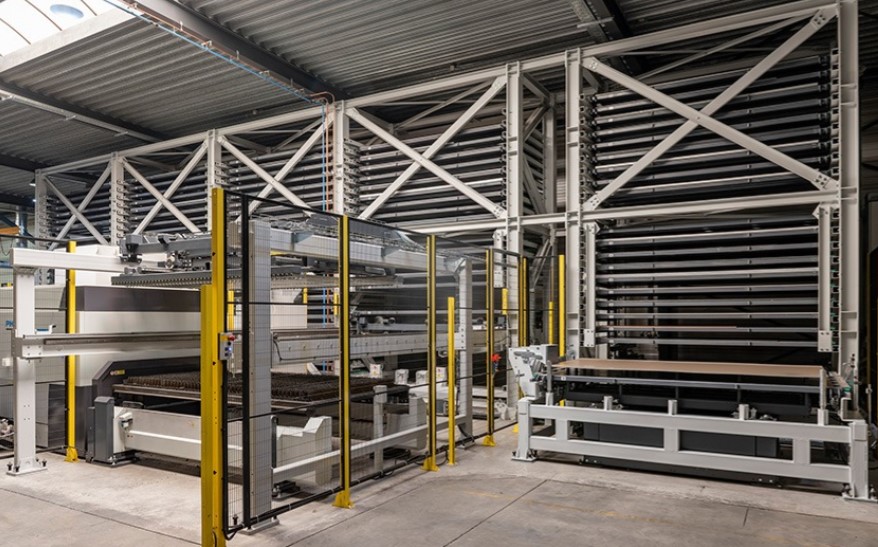

WAS offers a custom number of towers with a minimum of four towers in a single or double row configuration. The maximum capacity for input/output pallets is 3 or 5 tons. Stacking height is 90 mm. - Continuous material flow
The loading and unloading device guarantees the best possible transfer of raw materials and finished parts using a peeling system, sorting position, with smooth return to the warehouse or to an optional third table alongside the machine. - Pallet transfer unit
A pallet transfer unit positioned on a linear track behind or between the towers quickly and efficiently moves the pallets in and out of the towers. Laser measurement ensures pallets are correctly placed. - Touchscreen interface
The graphical Touch-A interface and warehouse management software are intuitive and simple to use. A WIFI connection is established with the pallet transfer unit. - Future retrofit
This MOVit modular automation unit can be added as a retrofit in the future.
Options
- Direct unload station
Cut sheets are unloaded on a third table alongside the machine where parts can be sorted and made directly available for additional processing. - Additional I/O station on tower
I/O stations or simple output stations can be added on available towers to create multiple material or part access points. These can be used to provide material to stand-alone machines or to bring parts to a sorting area or to press brakes. - Scratch-free unloading
Chain system on forks prevents scratches on finished parts.
