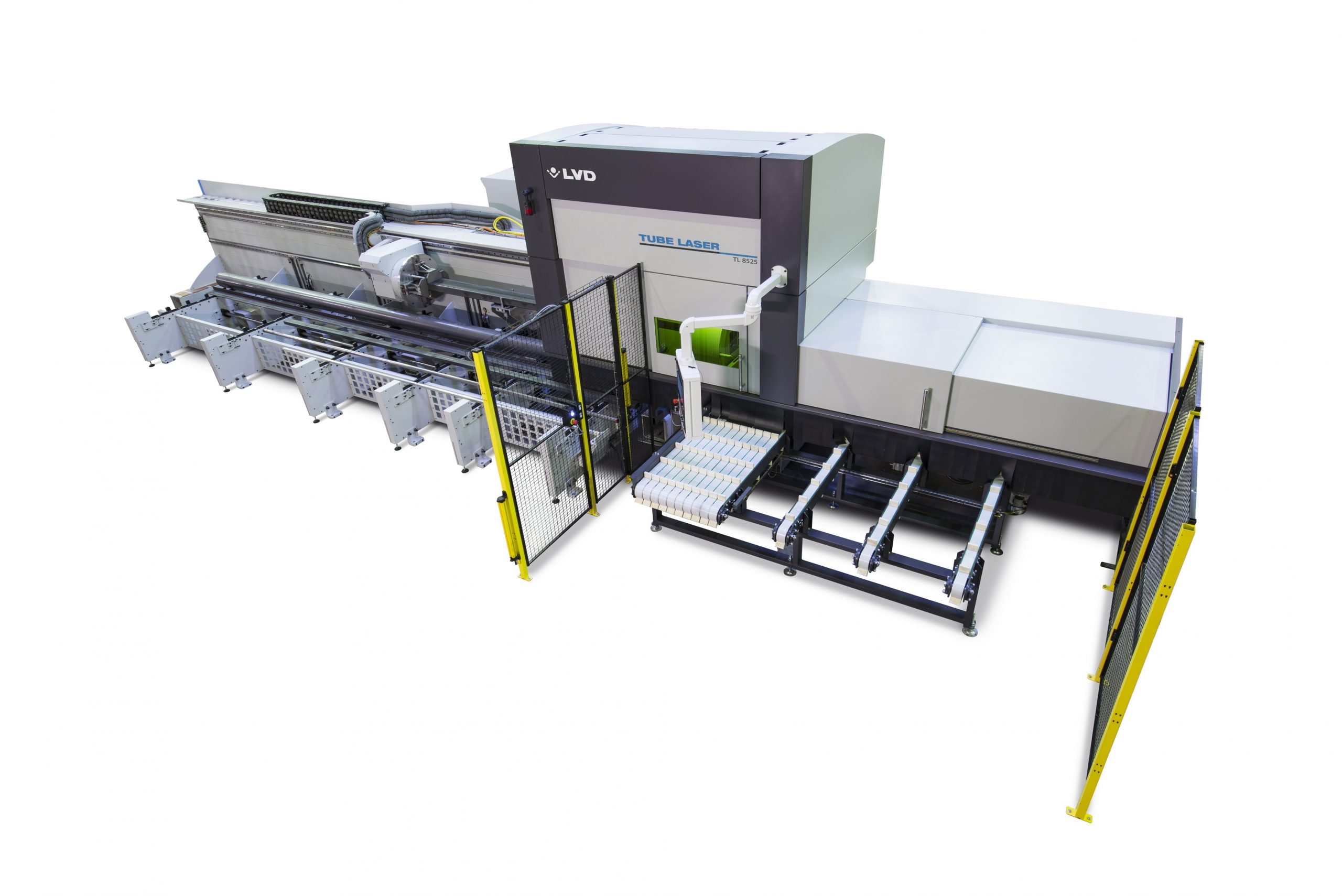

TL 8525-FL

Highlights

• Large tube cutting capacity
  Cut longer tubes and complex profiles. With a large 8200 mm infeed length, the TL 8525 can process tubes up to 250 mm round or square.
• Advanced cutting head
  A 45-degree 3D tilt cutting head delivers precision cuts in round, square, rectangular and irregular-shaped tubes, cuts complex profiles and channels, and can be used for weld-prep cuts in thick-walled tubes.
• More cutting range
  A generous 1190 mm X-axis cutting head range permits processing along a greater length of the tube including behind the steady rest unit. The capability to process more of the tube and waste less material makes tube cutting operations more productive and profitable.
• 6-position front loader
  A semi-automatic front loader handles up to six tubes of up to 250 mm diameter. The system can be loaded with different types of tubes in different sizes and can be interrupted during processing to add a new tube. The flexibility of material loading efficiently handles the needs of both small batch and long-run production.
• Automatic bow detection and compensation system
  Built-in functions automatically compensate for dimensional accuracy to ensure high accuracy results.
• Automatic twist compensation system
  Automatically checks for twists in the tube, keeping accuracy and machine productivity high.
• Outfeed tube support with conveyor table
  The servo-controlled table features a tilt function for smooth part release and is integrated to a 3 m part evacuation conveyor. The conveyor uses multiple compartments to securely separate and hold parts-even round or longer tubes – as they move along the conveyor.
• CNC touchscreen control
  The Siemens CNC control supports high-speed processing with a suite of intelligent laser control functions to help optimize cut quality. The easy-to-use controller features an integrated touchscreen panel.
• CADMAN-T programming software
  CADMAN-T features automated processes to support efficient and reliable programming of a range of tubes and profiles.
