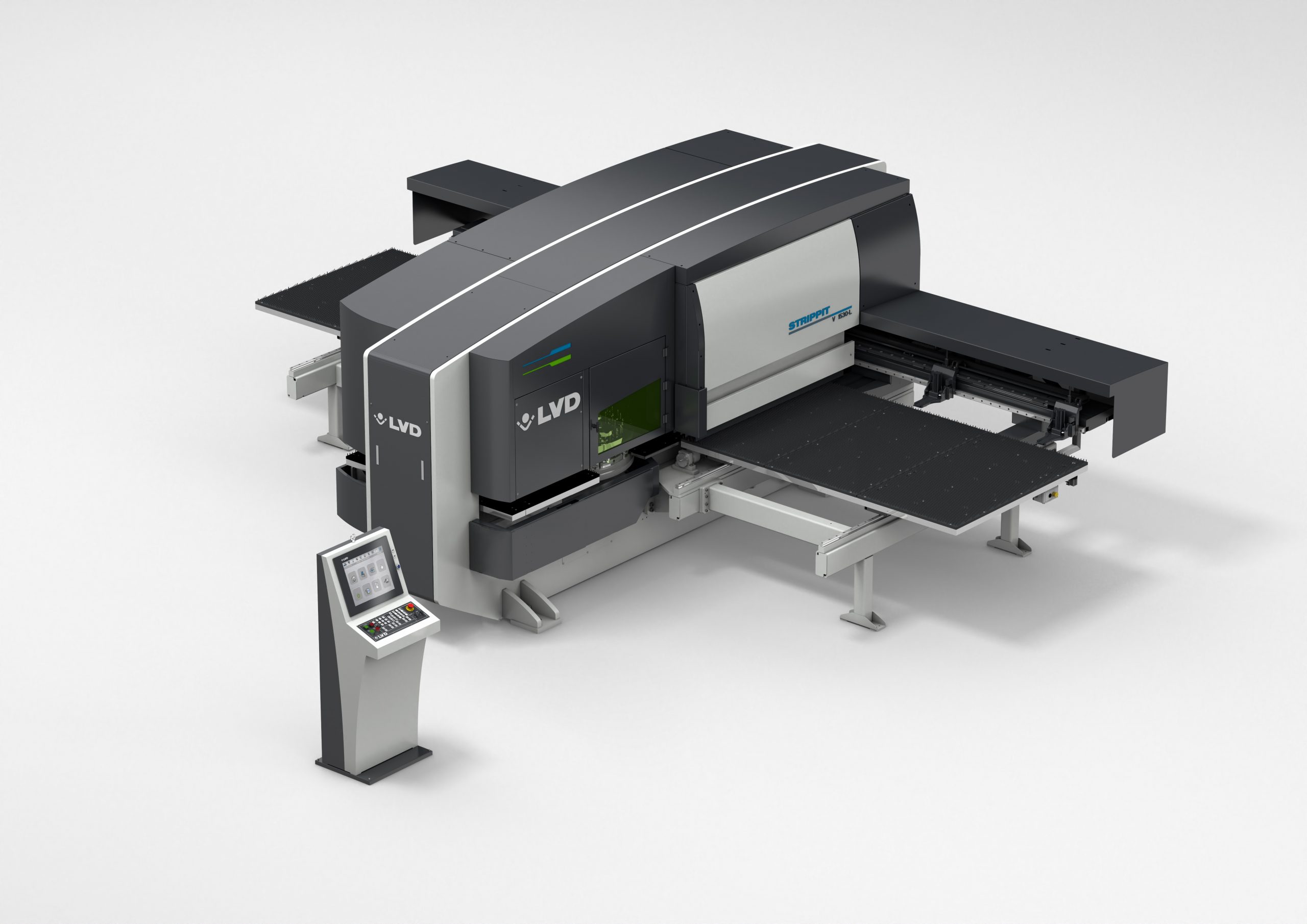

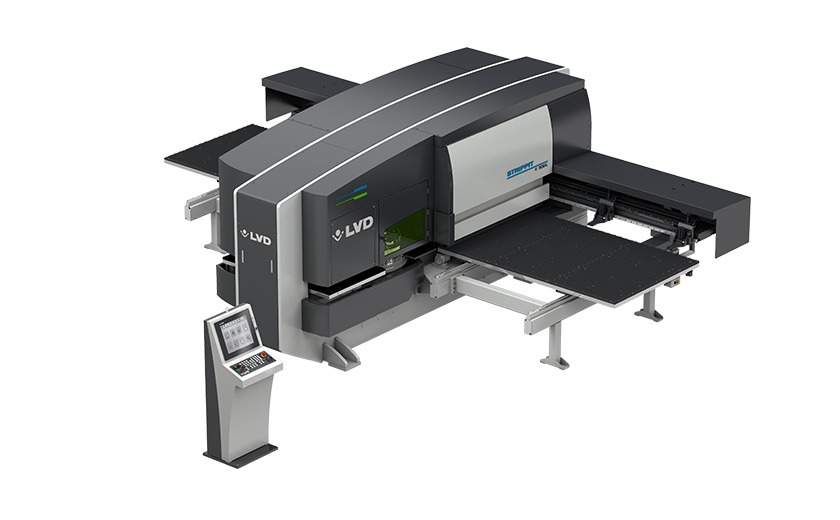

Strippit V-L

HIGHLIGHTS

• Thick turret punch press
  The Strippit V is a high-speed 30 ton hydraulic punch press built on a heavy-duty bridge frame for exceptional stability and punching accuracy.
• High production capacity
  The punch press features 48 thick-turret tooling stations with four 88.9 mm auto-index stations. This versatile mix of stations – able to accept forming, embossing, louvering, wheel and tapping tools – maximises tooling capacity and reduces set-up time for high production capacity.

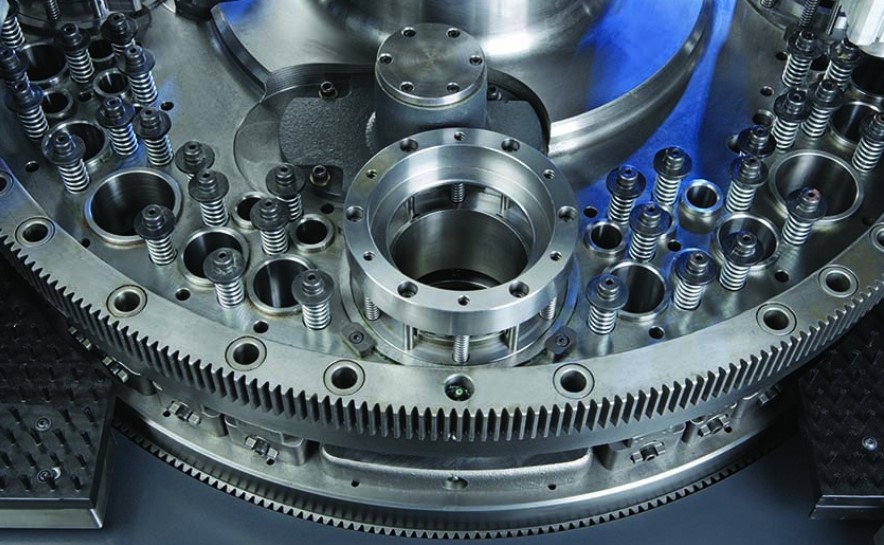

• Sleeved turret
  Hardened turret sleeves ensure accurate punch and die alignment throughout the life of the machine. Sleeves can be easily replaced, eliminating the need for costly re-machining of the turret.
• 4 kW fiber laser

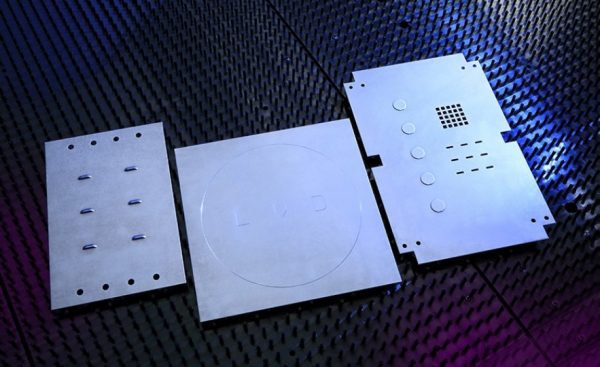

  Laser cut unique shaped holes or contours and etch material with high-quality results.
• Full-sheet processing

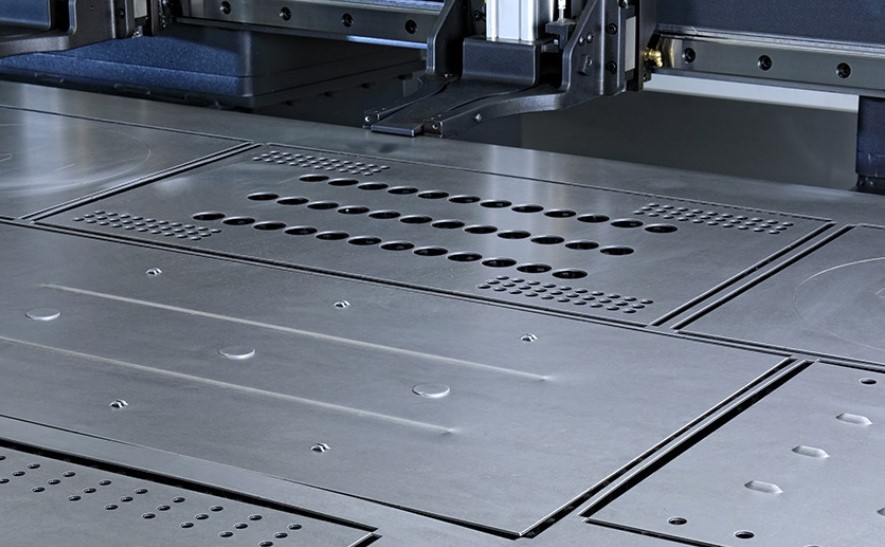

  Cut and punch a full-size workpiece of 3050 x 1525 mm without repositioning to save on production time, material usage and material handling.
• Large work chute for laser cut parts
  A 406 mm x 1524 mm work chute for laser cut parts makes it easy and convenient to evacuate processed parts or scrap.
• Smart ram control
  Smart Stroke ram control automatically optimizes the punch press ram motion for top productivity. No program codes or operator intervention required.

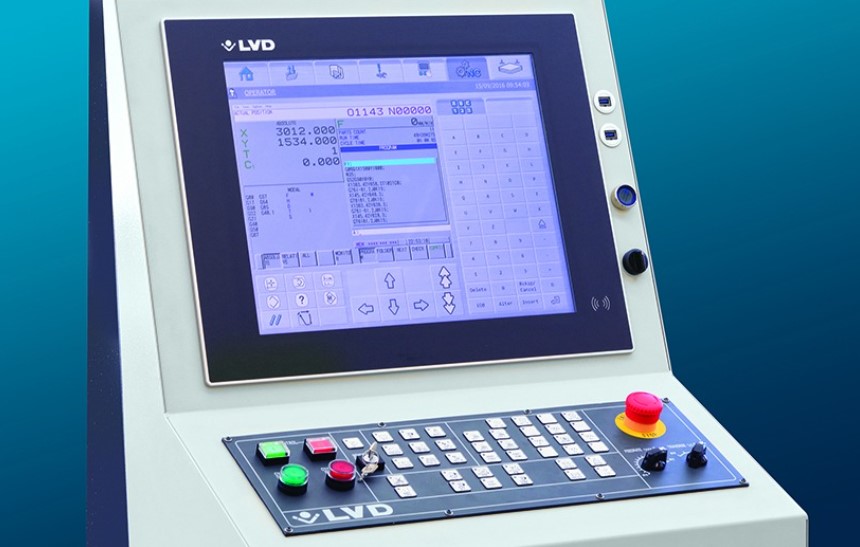

• Intuitive Touch-PL control
  The latest LVD Touch interface is intuitive to use for operators of any skill level.
• CADMAN-PL programming software
  Integrated with the Touch-PL controller, CADMAN-PL makes programming and job set up for punching and laser cutting virtually automatic.

OPTIONS

• Modular automation systems
  An automation system further extends machine efficiency and process reliability. Choose from a range of options, including Compact Autoload, Bin-sort System, Compact Tower (CT-P) for material storage and retrieval, Flexible Automation (FA-P) for advanced loading/unloading and part picking, full Tower Automation (TAS) or Warehouse Automation (WAS). A robotic interface can also be integrated.
• Brush table with roller balls
• Scrap conveyors
• Sheet lubrication system

Models

• V 1530-L

Specifications
