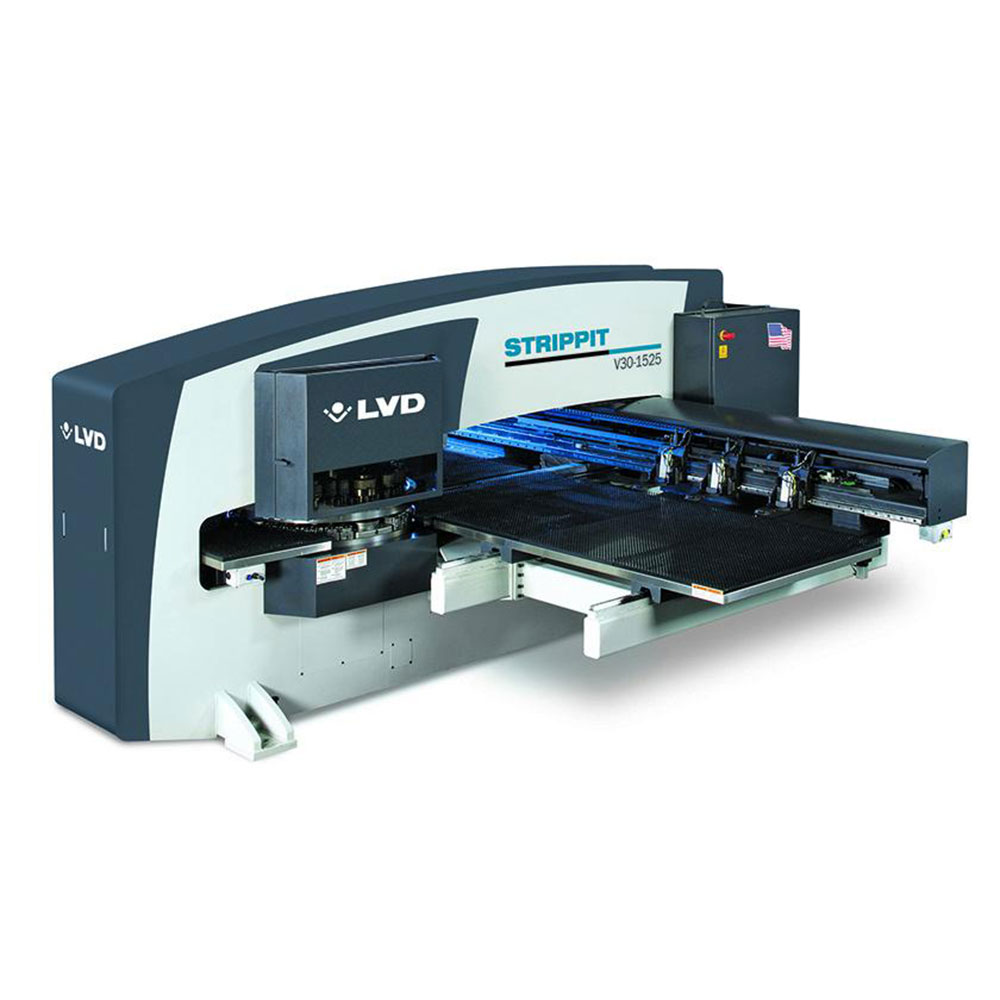

Strippit V

HIGHLIGHTS

• 30-tons of punching force
  Handle thicker materials efficiently with 30 tons of punching capacity.

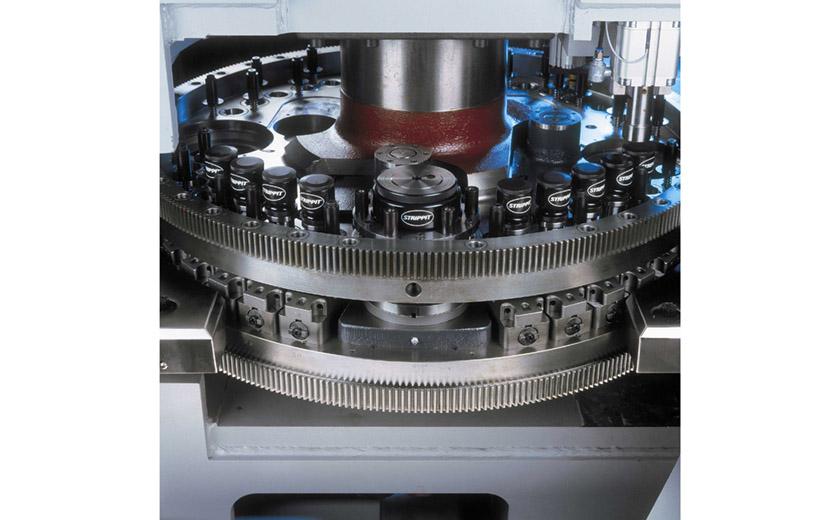

• 48-station turret
  A large 48-station turret allows for a broad range of punching applications, including complex part geometries that demand a larger tooling inventory. The turret features four 88.9 indexable stations and can be expanded with multitools.
• Heavy-duty bridge frame
  Machined as one piece, the Strippit V frame is stress-relieved for rigidity to ensure punching accuracy and repeatability.
• Programmable and relocatable work clamps
  Automating work clamp movement between jobs and during a punching cycle helps reduce setup time and increase productivity. Three programmable and relocatable work clamps can be automatically relocated during a punching cycle for full sheet utilization. Programmable work clamps which never require manual adjustment.
• Smart stroke
  Smart Stroke automatically determines the optimal tool hover height to deliver the highest punching rates possible.
• Smart clamp
  Automatically determines work clamp locations based on tool size, providing the smallest possible no punch zones to maximize sheet usage.
• Programmable parts removal chute
  Programmable parts removal chute evacuates parts up to 450 x 500 mm directly under the machine table or to an optional bin-sort system. This eliminates manual labor to remove parts from nests; parts are ready for the next operation.
• LVD Touch-P control
  Machine operation is intuitive with LVD’s Touch-P icon-driven touch screen control.
• CADMAN® software suite
  A full suite of software modules create a fully integrated process flow, including CADMAN-P punching programming software, CADMAN-SDI drawing importer, CADMAN-JOB real-time data collection, job tracking and ERP connection, as well as a Touch-i4 tablet for KPI performance indication and sorting and validating parts.

OPTIONS

• Brush/Ball table top
  Combination brush/ball tables are available to meet load carrying capacity needs.
• ABS automatic tool lubrication system
  Air blow system automatically lubricates the punch and guide to help ensure efficient tool stripping and extend the time between regrinding.
• MOVit automation
  A modular automation system further extends machine efficiency and process reliability. Choose a simple Compact Autoload, Compact Tower (CT-P) for material storage and retrieval, Flexible Automation (FA-P) for advanced loading/unloading and part picking, or full Tower Automation (TAS) or Warehouse Automation (WAS) systems.
• Parts conveyor
• Rotary binsort

Models

• V30-1225 (30 ton – 1250 x 2500 mm)
• V30-1530 (30 ton – 1524 x 3048 mm)
