HIGHLIGHTS

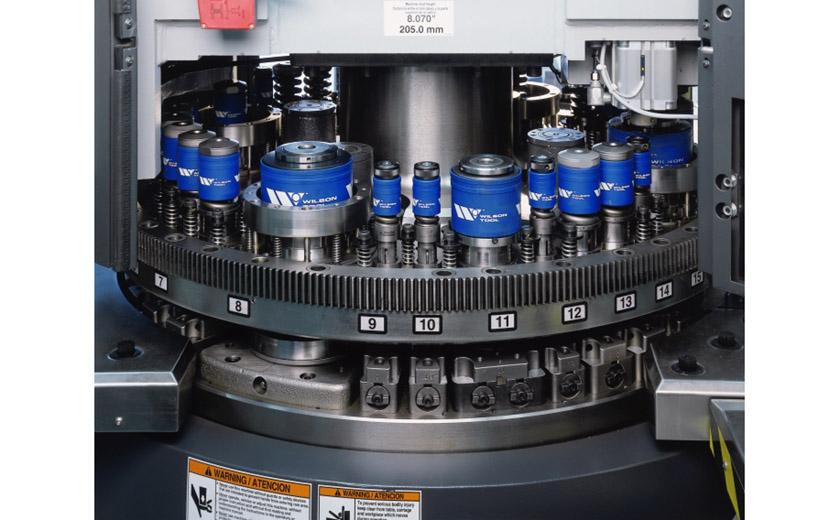

- 33-station turret
A 33-station turret features two 88.9 mm stations and three 50.8 mm stations. Every station has the flexibility to accept shaped or round punches and dies. - Forming flexibility
A generous 25 mm feed clearance distance between upper and lower turret facilitates forming operations. - Smart clamp
Automatically determines work clamp locations based on tool size, providing the smallest possible no punch zones to maximize sheet usage. - Quick-change die holders
Die change system offers easy and quick die changes of 15 seconds. - Fanuc control
The renowned Fanuc 0iP control features a self-prompting color display making Strippit P easy to operate. - CADMAN-P programming software
Powerful CAM software features a number of automated processes such as punch sequencing macros, automatic tool selection, clamp positioning and others to maximize punching machine productivity.
OPTIONS
- ABS automatic tool lubrication system
Air blow system automatically lubricates the punch and guide to help ensure efficient tool stripping and extend the time between regrinding.
MODELS

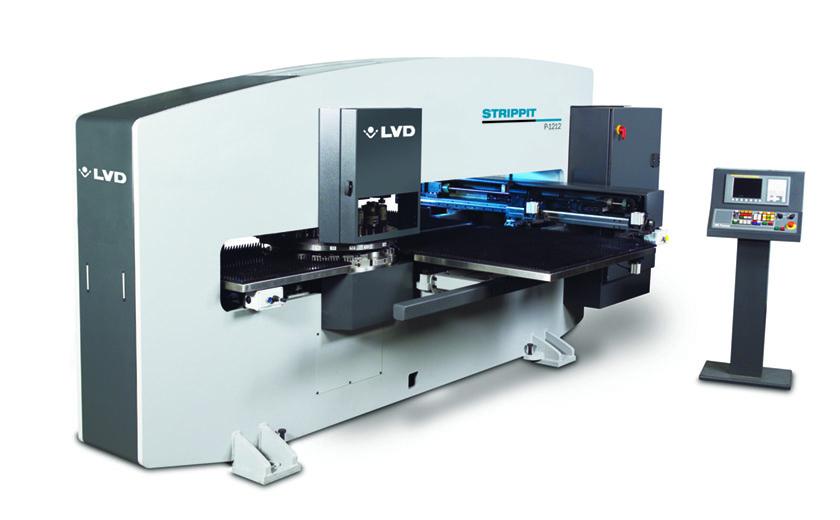

- P 1212 (20 ton – 1250 x 1250 mm)

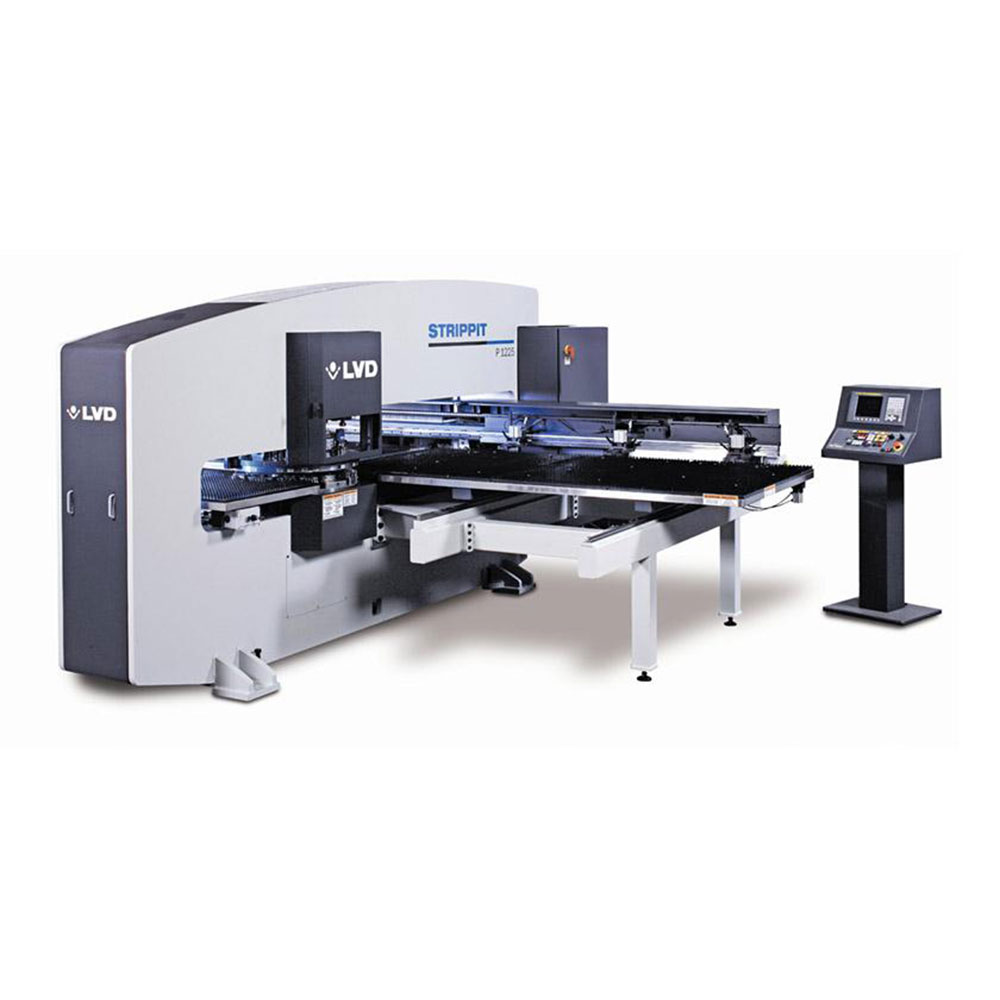

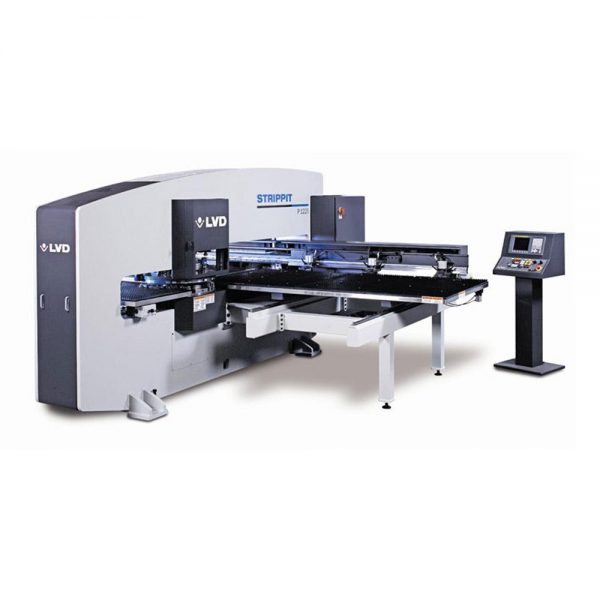

- P 1225 (20 ton – 1250 x 2500 mm)
- P 1525 (20 ton – 1524 x 2500 mm)
