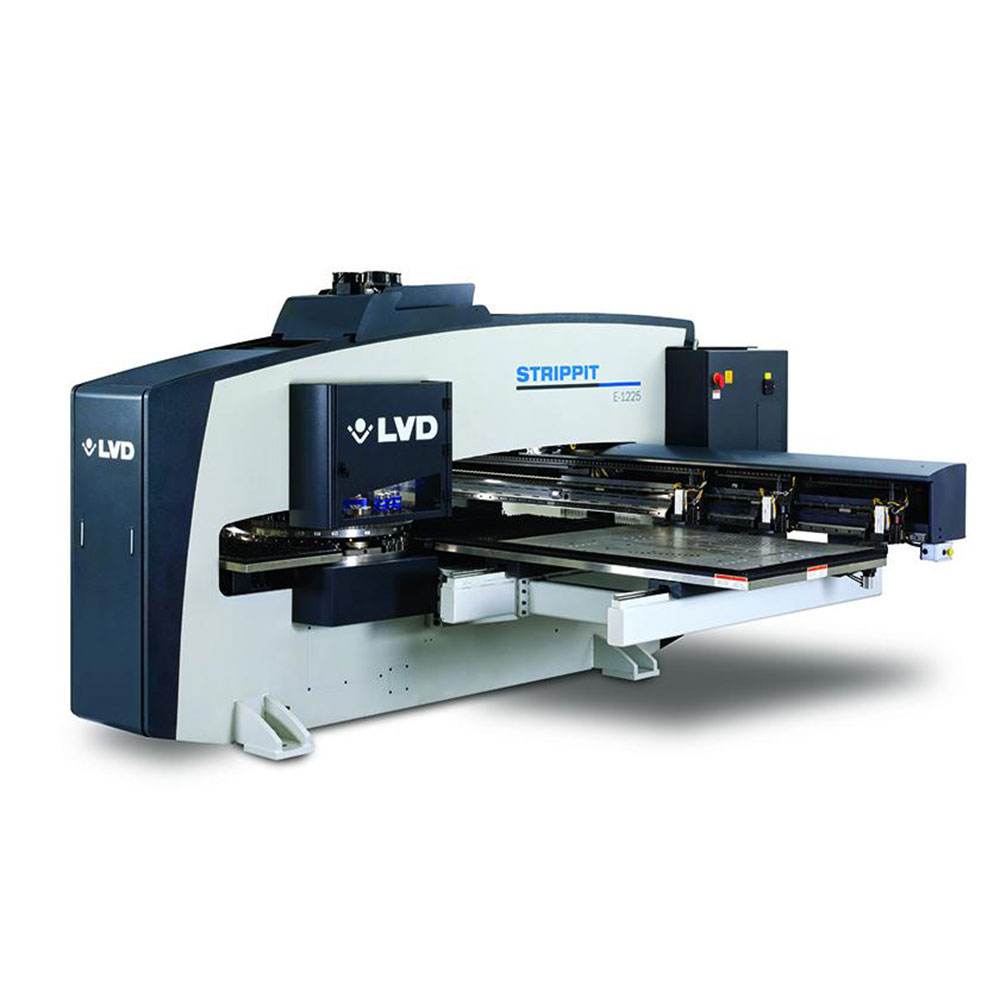

Strippit E

HIGHLIGHTS

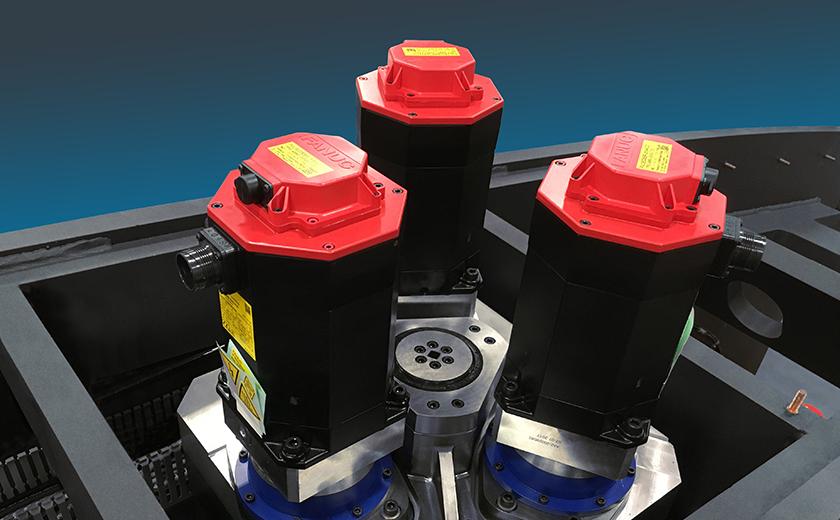

• Advanced servo-electric press drive
  The servo-electric press drive is energy efficient – at least 20% more efficient than hydraulic designs – and economical to operate with a power requirement of just 20 kVA. It uses a minimum number of components for highly reliable operation, reduced maintenance requirements.

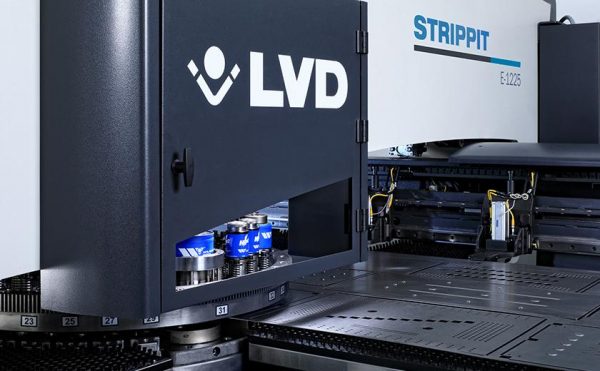

• 47-station turret
  A large 47-station turret features three 88.9 mm auto-indexable stations for tremendous tool-carrying capacity and flexibility.
• Heavy-duty bridge frame
  Engineered for superior accuracy and long production life, the Strippit E machine is built on a heavy-duty, closed-welded, stress-relieved frame for maximum stability.
• Enhanced forming

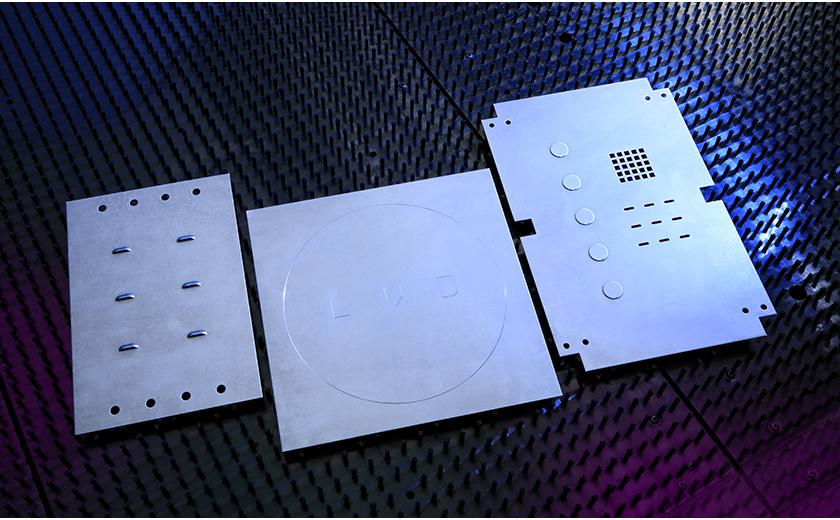

  Precise control over the ram delivers consistently accurate results for knockouts, wheel tool and forming operations, including countersinking and stamping. Ram positioning can be held to ± 0.001. A 25 mm feed clearance offers more forming capacity.
• Easy setup and changeover
  The Strippit E offers the easiest tool changeover in the industry. Quick-change die holders reduce setup time.
• Smart clamp
  Smart Clamp automatically detects exact clamp locations to provide the smallest possible no-punch zones

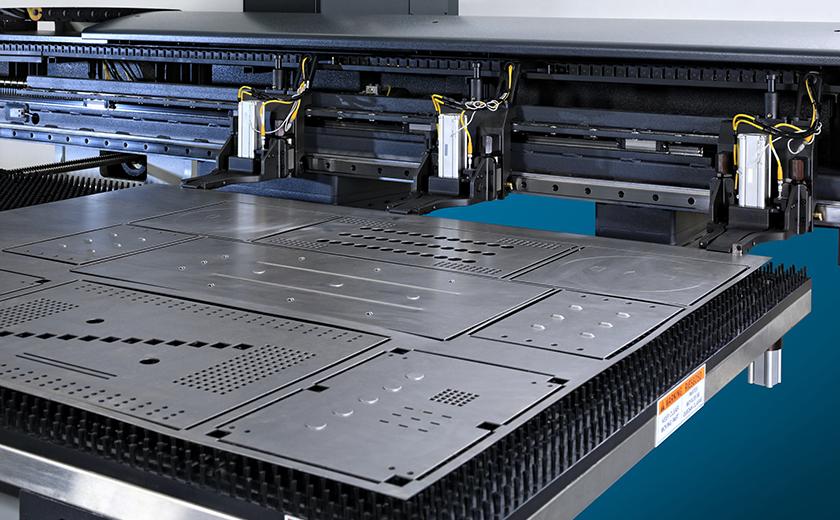

• CNC relocatable work clamps
  Automating work clamp movement reduces setup time and increases productivity. Three CNC relocatable work clamps with sheet pull out sensors are standard on the Strippit E-1530, available as an option for the Strippit E-1225.
• LVD Touch-P control
  An easy-to-use, icon-driven touch screen control simplifies machine operation.
• CADMAN® software suite
  A full suite of software modules create a fully integrated process flow, including CADMAN-P punching programming software, CADMAN-SDI drawing importer, CADMAN-JOB real-time data collection, job tracking and ERP connection, as well as a Touch-i4 tablet for KPI performance indication and sorting and validating parts.

OPTIONS

• Additional clamping
  The Strippit E-1225 features two manual work clamps and is available with an optional third work clamp or optional three CNC relocatable work clamps with part pull out sensor.
• ABS automatic tool lubrication system
  Air blow system automatically lubricates the punch and guide to help ensure efficient tool stripping and extend the time between regrinding.
• MOVit automation
  A modular automation system further extends machine efficiency and process reliability. Choose a simple Compact Autoload, Compact Tower (CT-P) for material storage and retrieval, Flexible Automation (FA-P) for advanced loading/unloading and part picking, or full Tower Automation (TAS) or Warehouse Automation (WAS) systems.

Models

• E 1225 (20 ton – 1250 x 1250 mm)
• E 1530 (20 ton – 1524 x 3048 mm)
