Phoenix FL

VERSATILE, ALL-ROUND PERFORMER

Phoenix FL is a dynamic, all-round fiber laser cutting machine – able to handle a wide diversity of material types and thicknesses with high performance features and high dynamics that keep it consistently productive. The system is also offered in large-format models and with advanced automation.

  • High dynamics, high performance for a range of jobs
  • 4, 6, 10, 12 and 20 kW laser source
  • Sheet size formats : 3050 x 1525 mm, 4065 x 2035 mm, 6160 x 2035 mm, Phoenix FL-6525: 6400 x 2500 mm straight cutting, 6100 x 2000 bevel cutting
  • Smart factory – Industry 4.0 compatible
Phoenix 4020 & 6020 PDF Phoenix 3015 PDF
Category:

Highlights

• High dynamics
Rigid machine construction and highly dynamic drive system make high throughput possible across a range of material thickness.

• Power source range
The power source of a Phoenix can range from 4 to 20 kW. Our team of laser professionals can help you select the appropriate laser power for your application in order to achieve good cutting quality and speed.

• Phoenix FL-6525 with bevel head
Phoenix FL-6525 can be equipped with a bevel head for a wide range of applications. Bevel cutting offers a fast and cost-effective way to create intricate designs or prepare material for subsequent welding operations.

• Phoenix 20 kW
The 20 kW laser cuts 45 mm mild steel with clean, smooth edge quality. When processing steel, stainless steel and aluminium using nitrogen, 20 kW cutting speeds are up to 2.5 times faster than a 10 kW source. The high-performance cutting head ensures process stability and edge quality at high power.

• Large-format cutting
Large-format Phoenix machines handle sheet sizes up to 6400 x 2500 mm, meeting large, heavy-duty cutting requirements while making optimum use of materials.

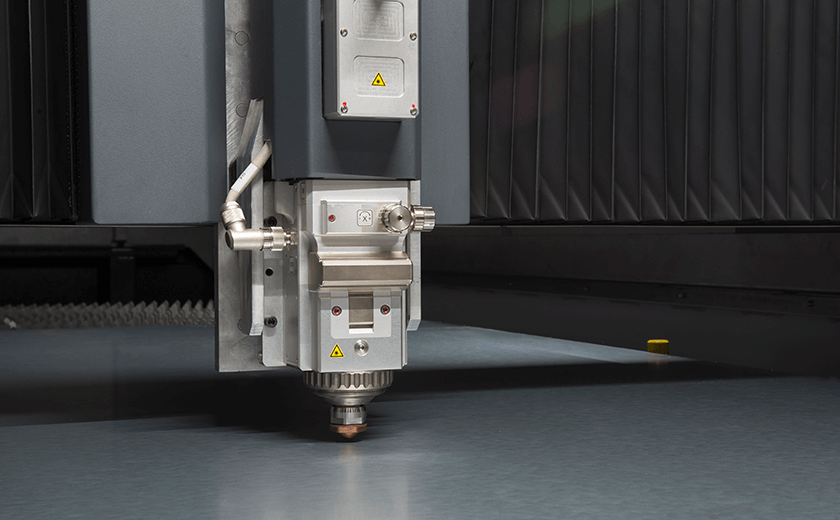

• High-end zoom cutting head
Machines up to 12 kW feature automatic adjustment of focus position and focal diameter to ensure optimal cutting speed and quality.

• Automatic shuttle tables
Shuttle tables reduce load time and keep material fed to the machine for uninterrupted part processing and increased productivity.

• Touch screen control
LVD’s 19-inch Touch-L control simplifies machine setup and provides a graphical user interface that is easy to use and follow for the operator.

• CADMAN® software suite
A full suite of software modules create a fully integrated process flow, including CADMAN-L laser cutting programming software, CADMAN-SDI drawing importer, CADMAN-JOB real-time data collection, job tracking and ERP connection, as well as a Touch-i4 tablet for KPI performance indication and sorting and validating parts.

Options

  • Bevel cutting head on Phoenix FL-6525
  • Automatic nozzle changer
  • Automation-ready package
  • Transversal scrap conveyor

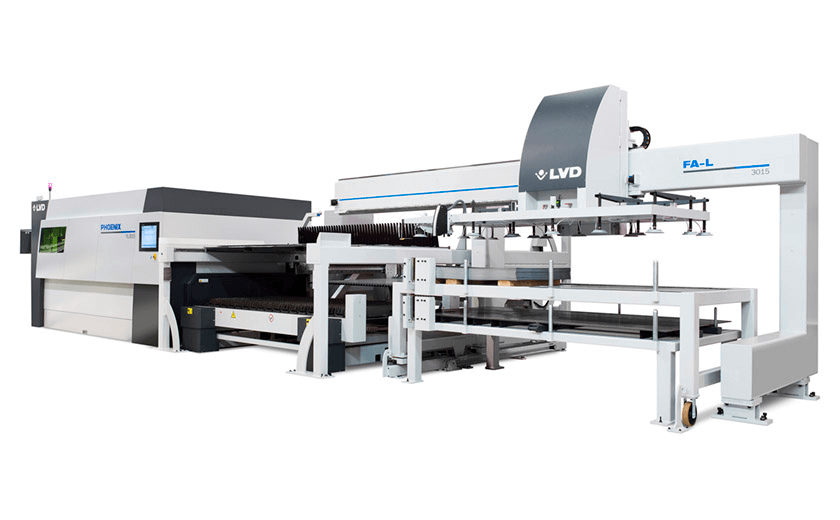

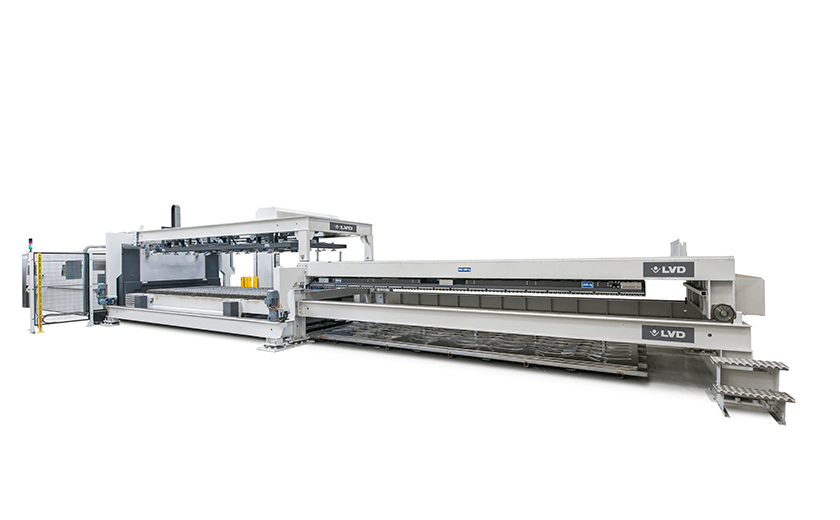

  • Large-format automation
  • MOVit modular automation

Models

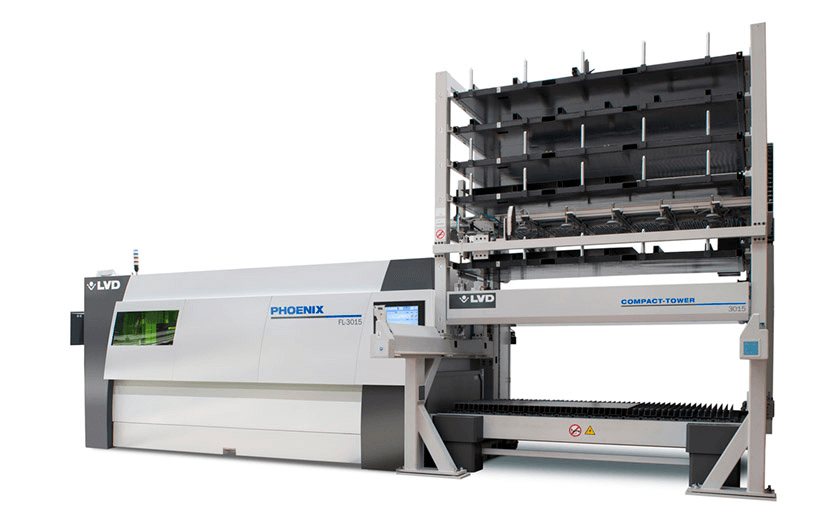

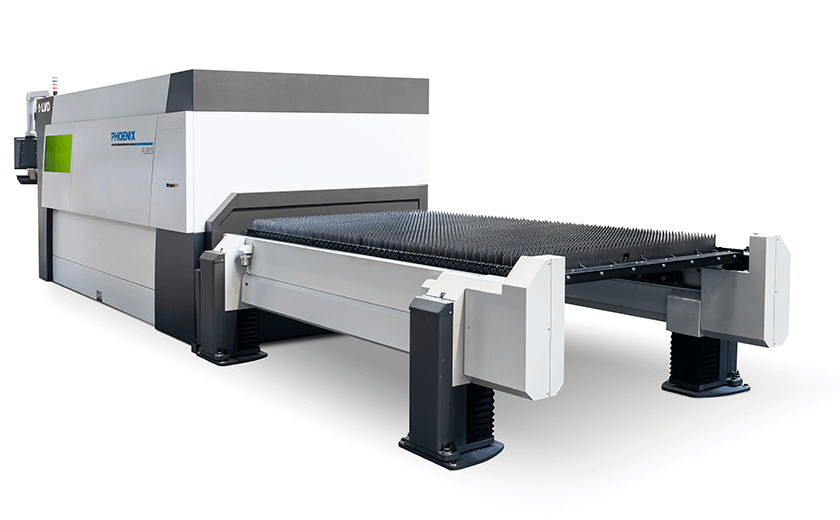

  • Phoenix FL-3015

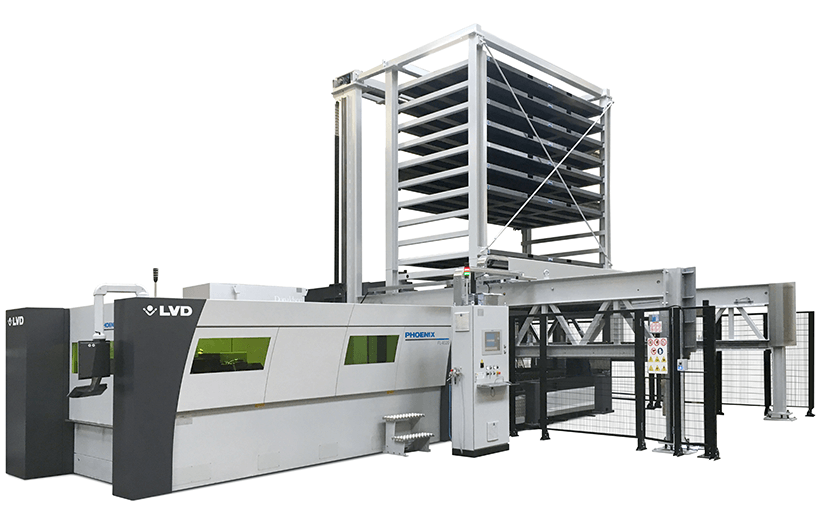

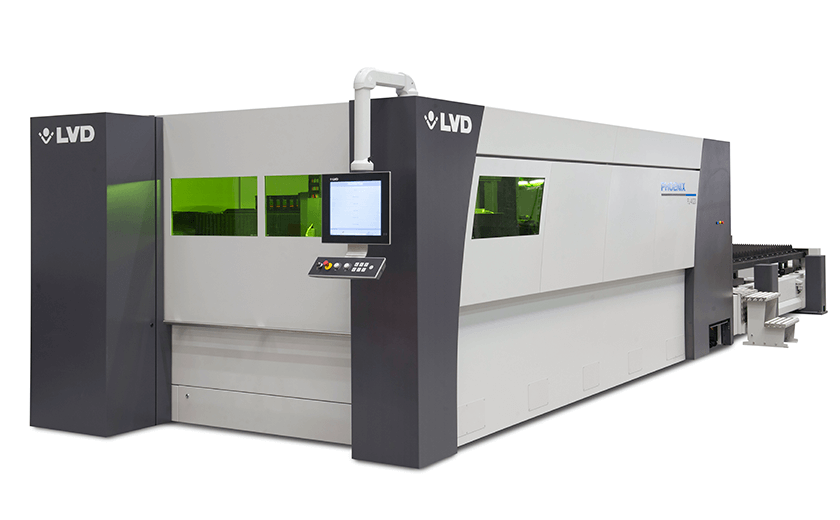

  • Phoenix FL-4020

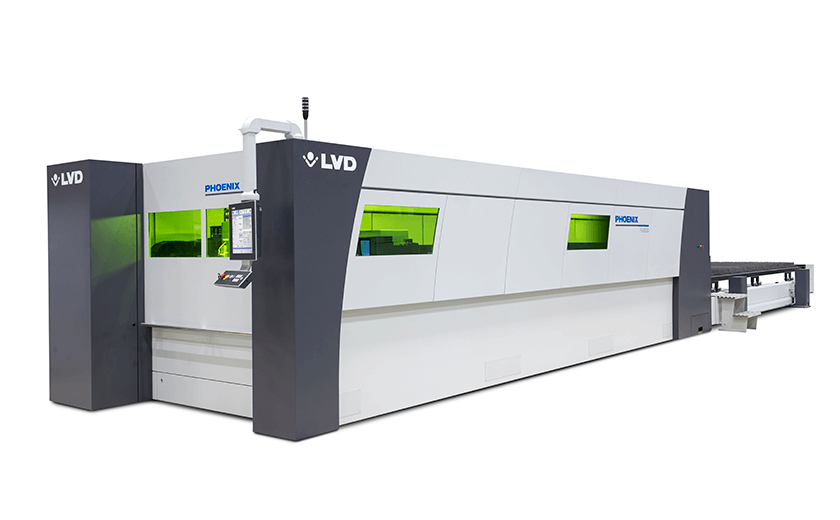

  • Phoenix FL-6020

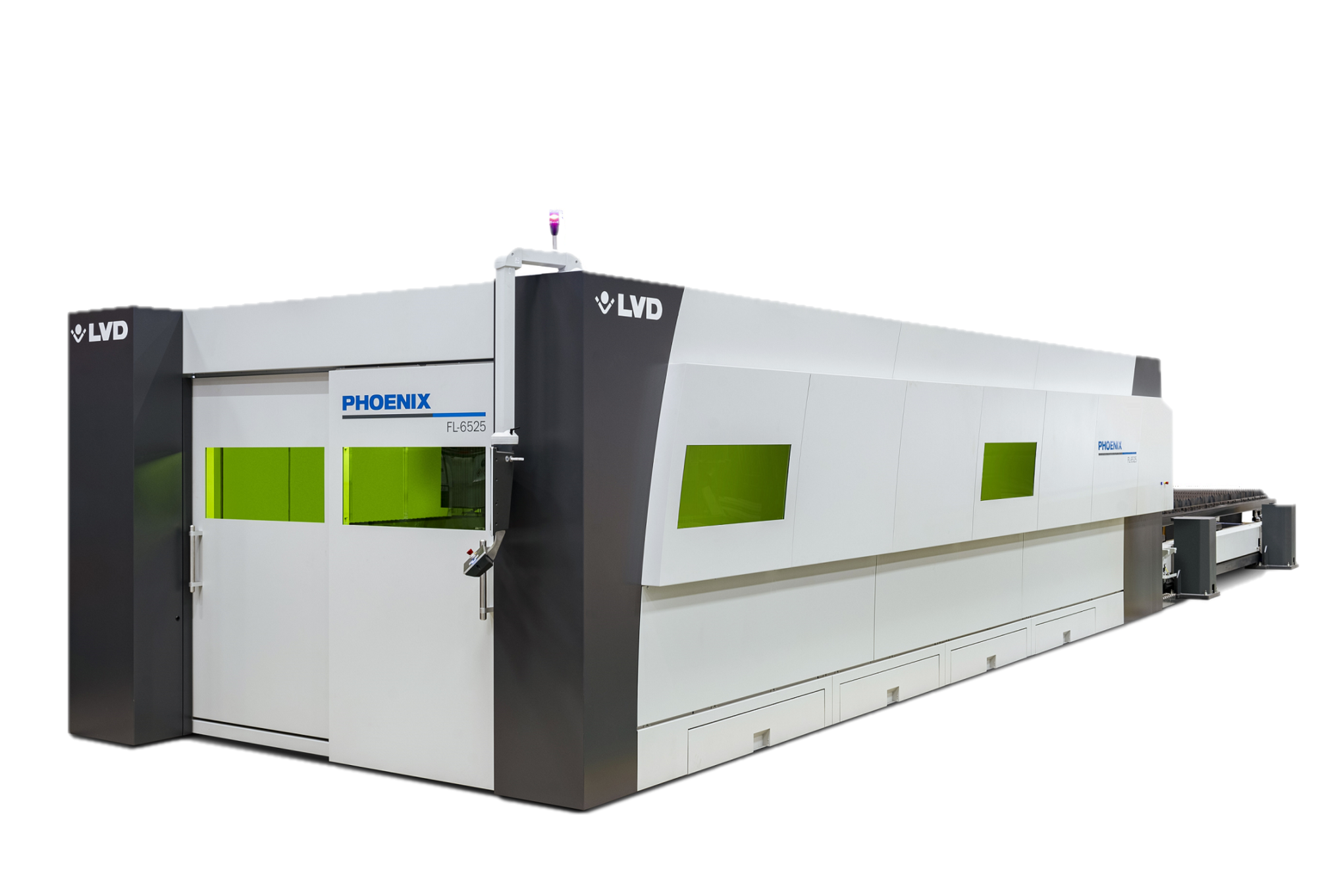

  • Phoenix FL-6525 (Straight cutting or Bevel cutting)

Specifications

  • 4, 6, 10, 12 or 20 kW laser source
