Model 309

• Machines compliant to 2006/42/CE standard
• 3 driving rolls to guarantee maximum drive on the profile
• Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
• Lateral guide rolls with three-dimensional adjustment

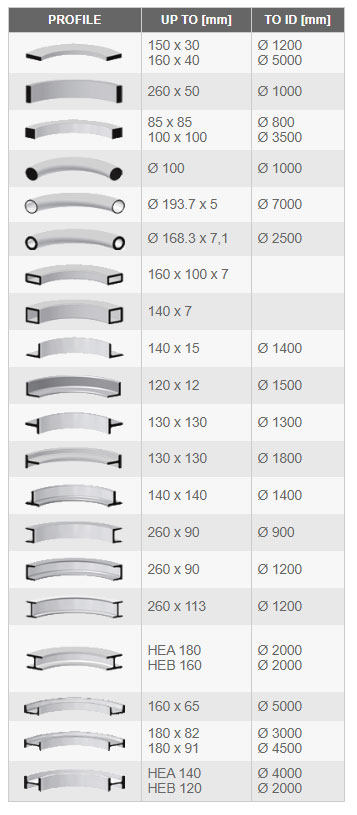

• Modular rolls that allow the bending of most profiles
• Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC
• Free standing remote control station to control the machine in safety
• Possibility to install the machine both in vertical and horizontal position
• One-piece fabricated steel frame
• Torque limiter installed on top roll shaft
• Shaft and pinions installed on high dynamic load roller bearings
• Gears coupled directly on splined shaft
• Water based environmental friendly paint
