Load-Assist

EASY LOADING AND UNLOADING

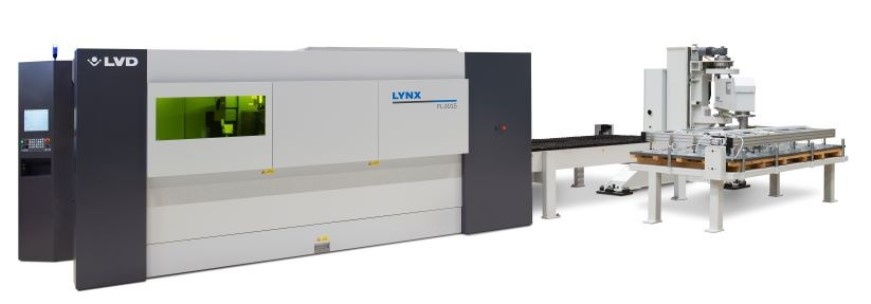

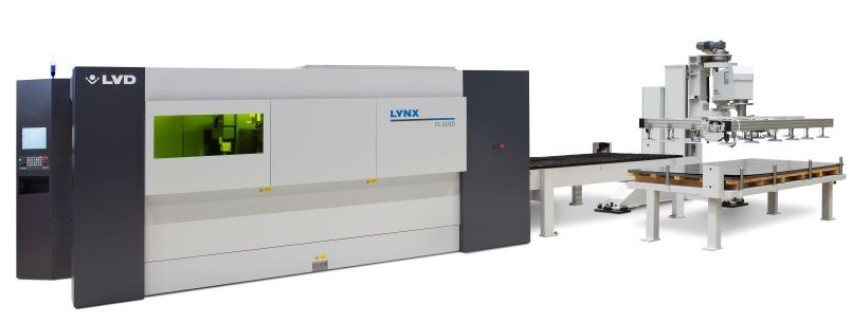

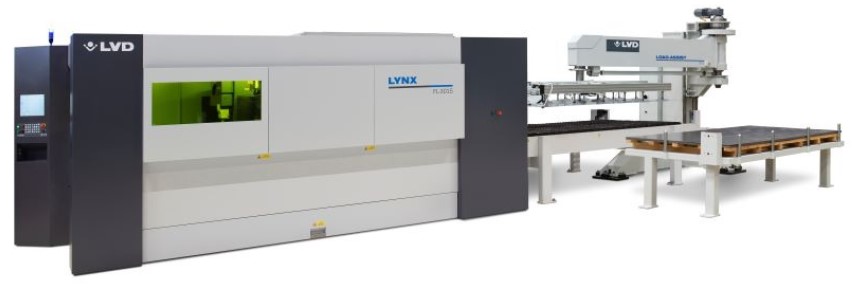

Load-Assist Automation (LA) is an easy-to-use laser automation system offered in two configurations for increased laser cutting productivity. LA Load transfers sheets to the shuttle table and LA Load/Unload loads material and unloads cut sheets.

  • 3070 x 1540 mm, 4090 x 2055 sheet sizes
  • Handles materials up to 20 mm (LA 3015) and up to 12.7 mm (LA 4020)
  • LA Load/Unload : Phoenix FL-3015, Phoenix FL-4020, Puma 3015, Puma 4020
  • LA Load : YSD LaserONE 3015, Phoenix FL-3015, Puma 3015
Load-Assist 3015 & 4020 PDF
Category:

Highlights

  • Convenient pallet manipulation
    Load-Assist automation is a simple, yet very efficient system to facilitate sheet movement to and from the laser shuttle bed.
  • Easy-to-use
    LA Load is controlled by a simple button system and can be used by operators of any level. LA Load/Unload system can communicate with the laser cutting machine to make automatic cycles possible without the need for operator intervention.
  • LA Operator Load
    LA Load transfers sheets quickly and efficiently from a stack of raw material to the machine.
  • LA Load/Unload
    The load/unload configuration facilitates movement of raw materials and finished parts.
  • Future retrofit
    These modular MOVit automation units can be added as retrofits.

Options

  • Input table for raw material
  • Output table for finished parts
