Highlights
- High bending speeds
Dyna-Press efficiently bends small parts at high speeds up to 25 mm per second. This results in more parts per hour and a lower cost per part. - Electric-drive press brake
Dyna-Press provides precise ram-position and force control across the entire length of the ram. A smooth transition from approach to working speed minimises power consumption. - Low maintenance cost
The machine has fewer components and is therefore easy to maintain. A streamlined design uses two heavy-duty ball screws to drive the force transmission from the servomotors to the pressing force of the ram. - Bending methods
Machine and software are suitable for commonly used bending methods: air bending, coining, hemming and bottoming. - Touch-B control

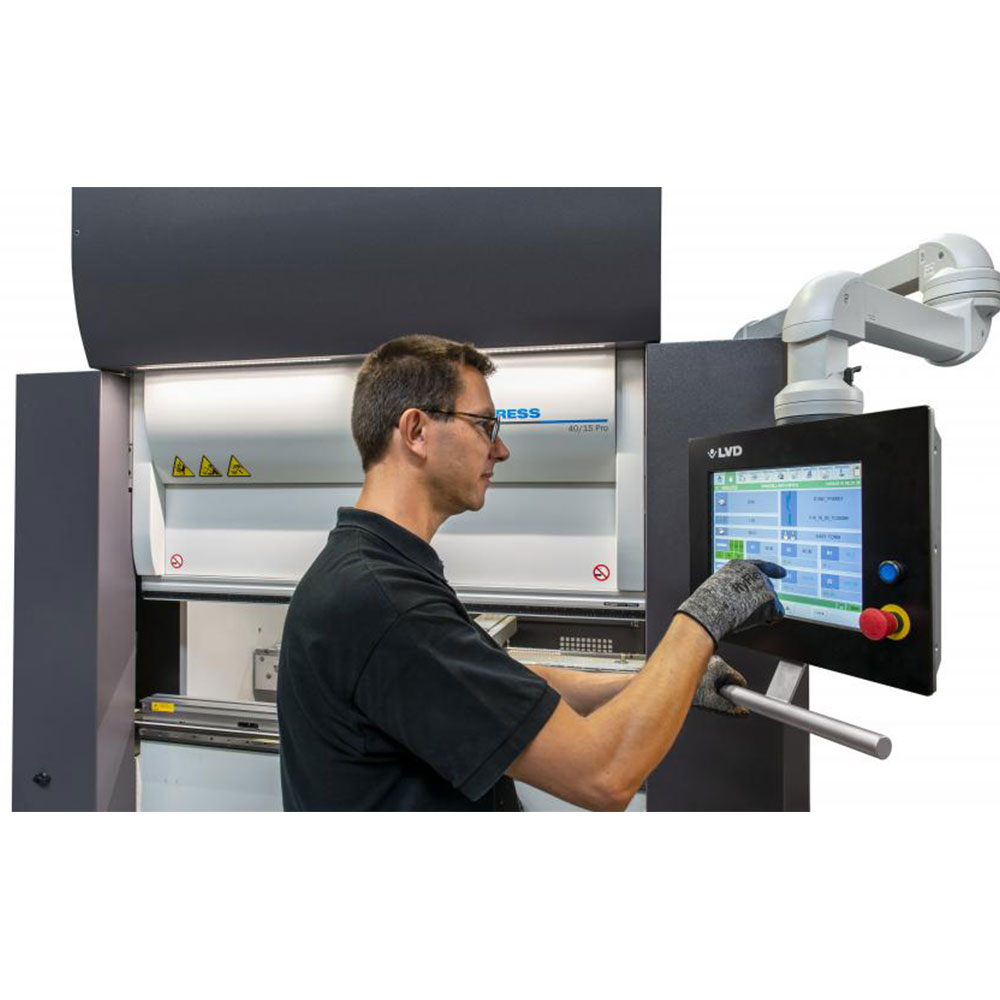

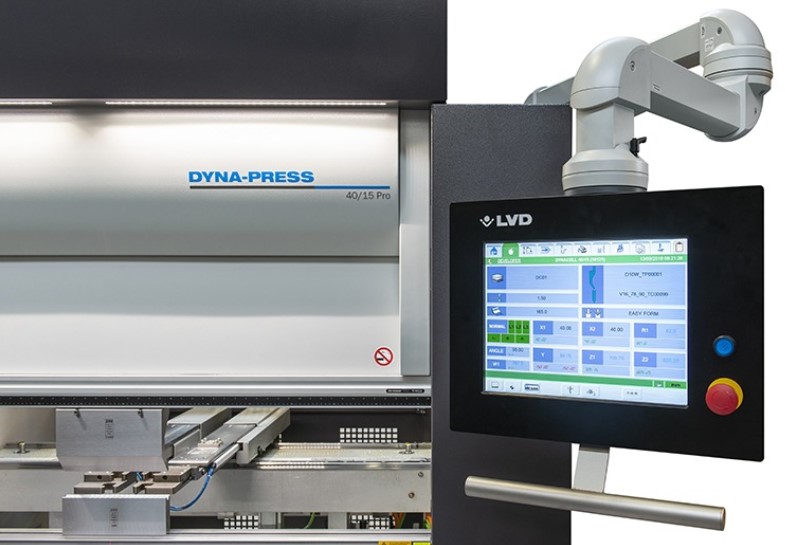

LVD’s touch screen control is simple to operate with a graphical, icon-driven user interface. It provides synchronised control of the machine allowing positioning of all available axes. - Ergonomic & secure

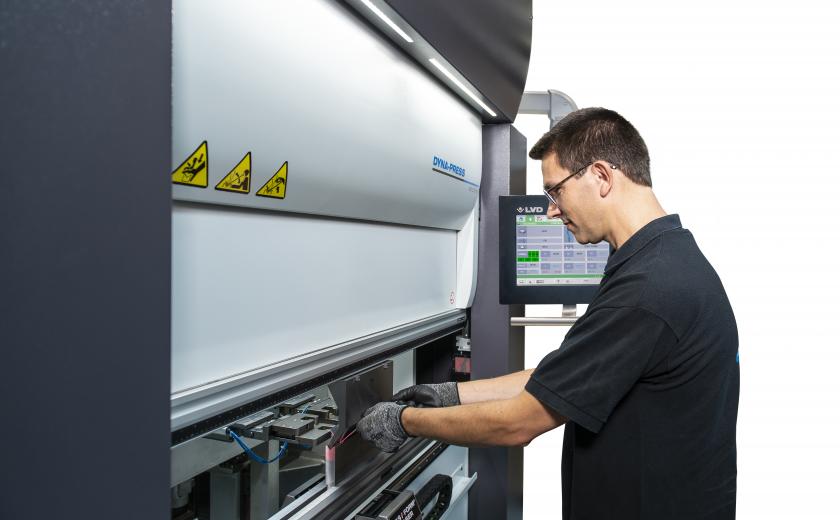

Depending on the model, Dyna-Press is equipped with a front support table so the operator can work in a seated or standing position. A lightguard or an IRIS Lazer Safe guarding system provides an added measure of security. - CADMAN® software suite
A full suite of software modules create a fully integrated process flow, including CADMAN-B bend programming software, CADMAN-SIM robot software, CADMAN-SDI drawing importer, CADMAN-JOB real-time data collection, job tracking and ERP connection, as well as a Touch-i4 tablet for KPI performance indication and sorting and validating parts.
Options
- Easy-Form® Laser

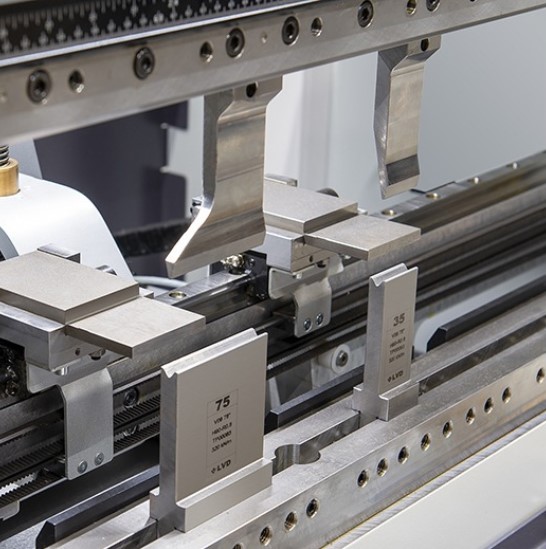

- Pneumatic clamping on ram and table
- Front supports on guiding
- Communication interface for robot, including robot fingers
Models

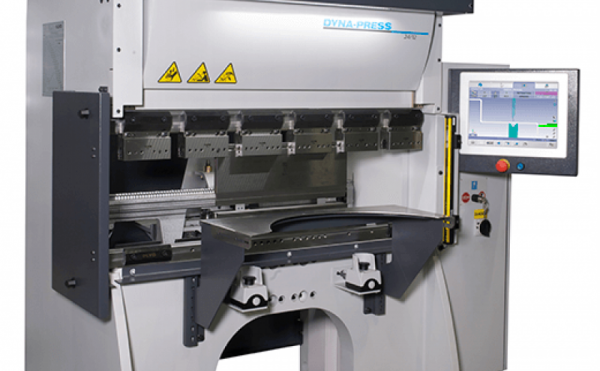

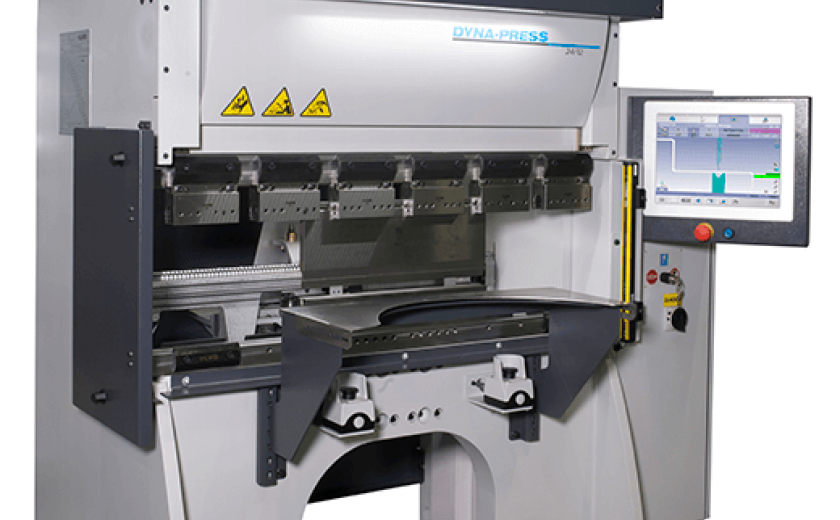

- Dyna-Press 24/12

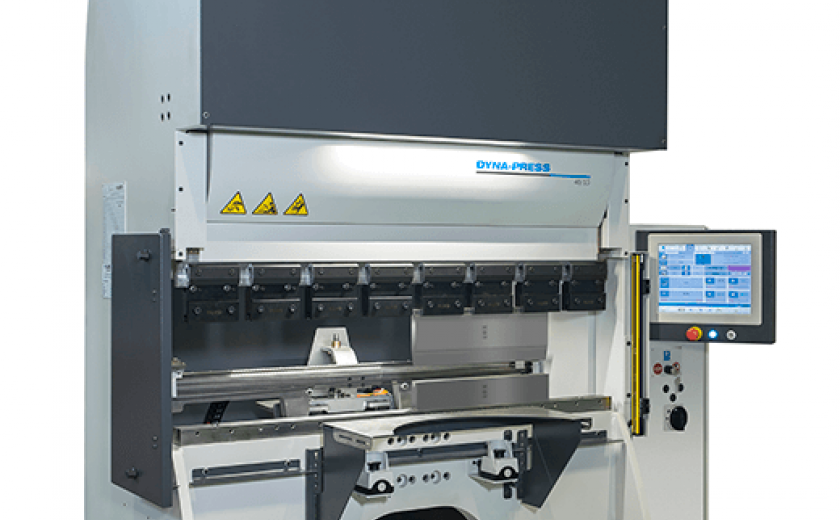

- Dyna-Press 40/15

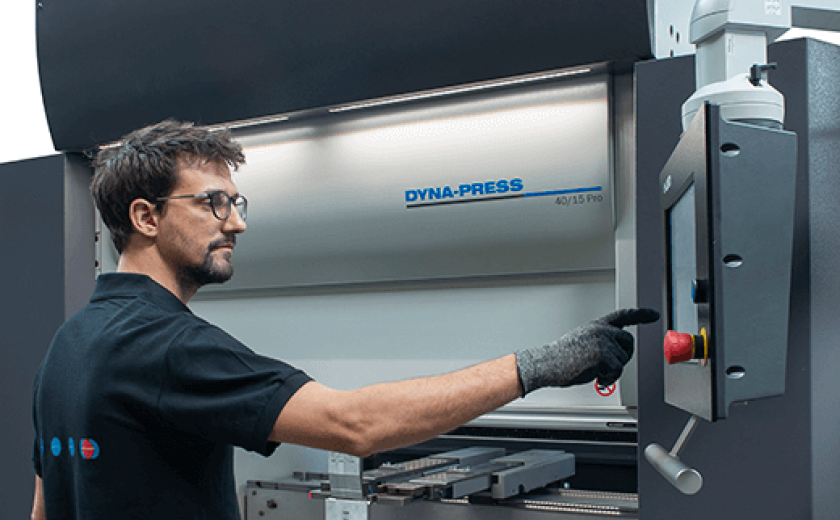

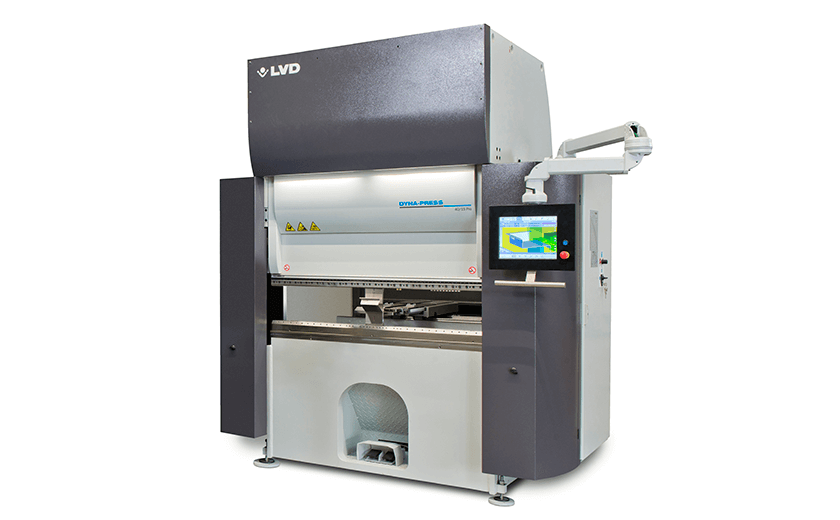

- Dyna-Press 40/15 Pro
- Dyna-Press 60/20 Pro
