CADMAN – SDI

SEAMLESS 3D FILE IMPORT

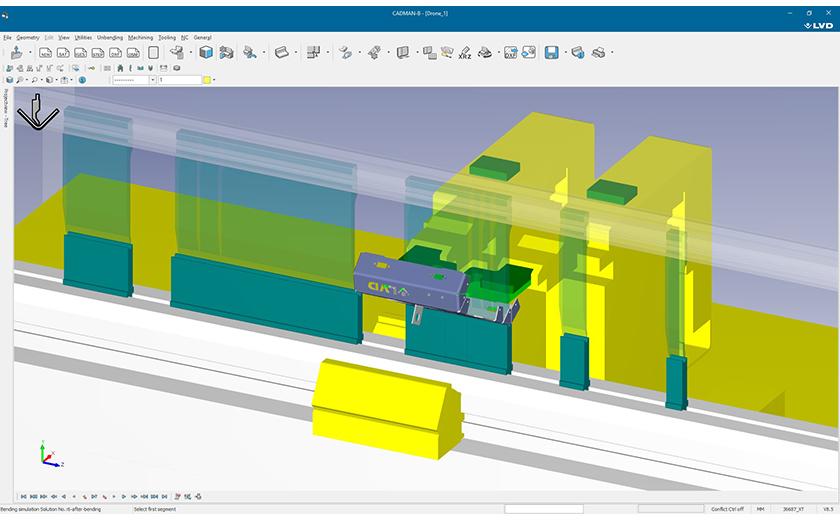

CADMAN-SDI (Smart Drawing Importer) makes generating estimates from imported CAD files faster and easier. CADMAN-SDI imports your files and stores them as OSM (Open Sheet Metal) in the CADMAN database, making them accessible for the CADMAN software suite. All relevant cost drivers are displayed on the screen and can easily be exported to create an accurate cost estimate. CADMAN-SDI is powered by BricsCAD, a 3D sheet metal CAD package that allows part adjustments or corrections to be made. With a simple click, the part is opened in CADMAN-B for a feasibility check. For SolidWorks users, CADMAN-SDI is available as a Plug-in.

Download Brochure
Category:

Key Features

  • Easily converts from different file formats
  • Imports parts individually or in a batch
  • Parts are directly stored in the CADMAN database

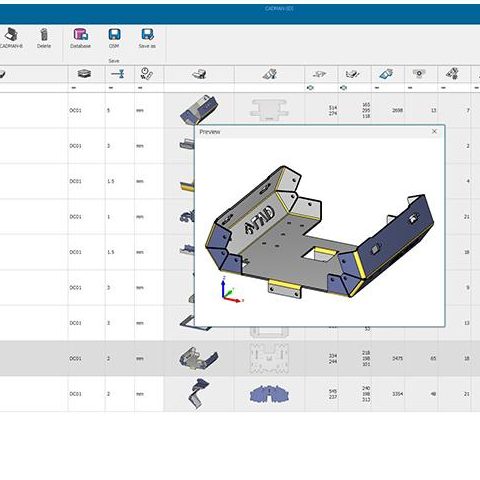

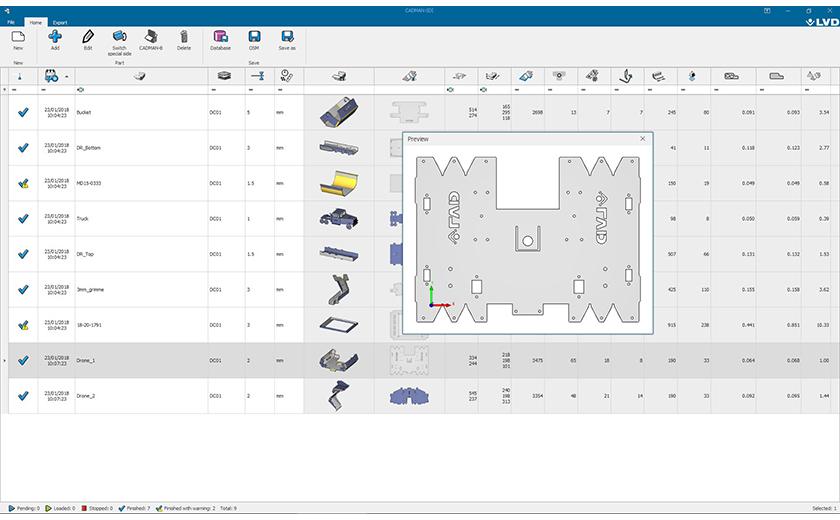

  • All cost drivers are visible at a glance
  • Easy export of cost drivers

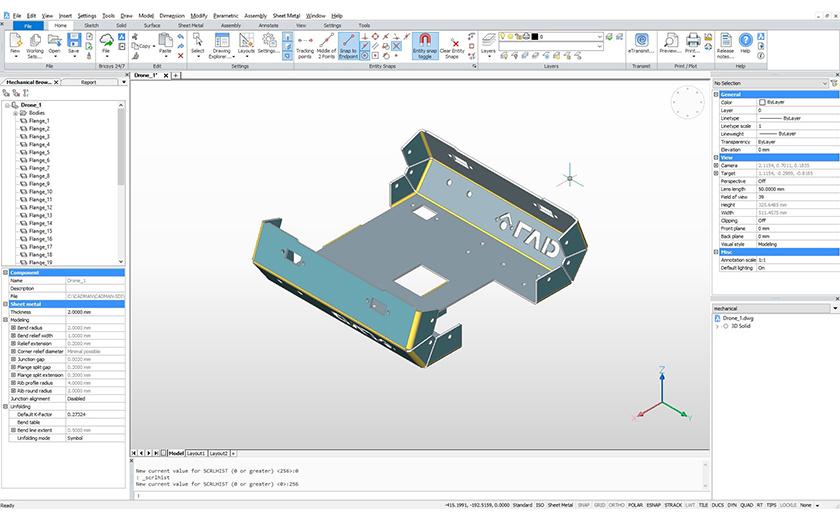

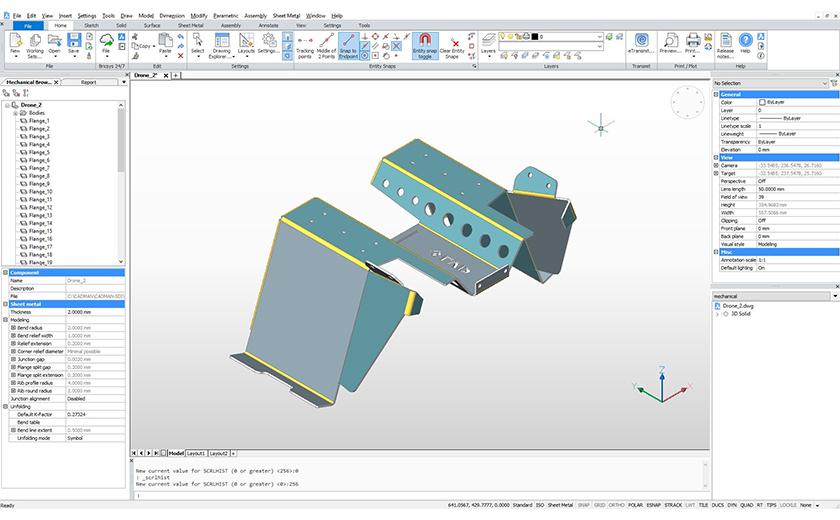

  • BricsCAD sheet metal module for part modification or correction
  • Available as a Plug-in for SolidWorks

Specifications

  • For plug-in availability for your CAD system, consult your local LVD representative
